Starboard Foil E-Type 1700 - 1300
E-TYPE
Wings designed for more glide, more speed, with maximum pumping and flying efficiency.
E-Type wing set available sizes: 1700 // 1300
WING SET + MAST SET = COMPLETE FOIL
CHOOSE YOUR MAST SET
Wing Sets need a Mast Set to make a complete foil. Choose between Monolithic Carbon and Aluminium V7:
Monolithic Carbon mast sets are available in: 72cm // 82cm // 92cm // 102cm
Aluminium V7 mast sets are available in: 72cm // 82cm
E-TYPE FRONT WING DESIGN
The E-Type's higher aspect ratio and straighter leading edge increases flight efficiency for a faster glide with less drag.
Starboard Foils' signature look: the double concave adds stability at speed while the drop-down wing tips act like thruster fins to give precise carving traction.
The thick asymmetrical profile with a rounded leading edge gives maximum lift to boost low-speed performance and overall flying efficiency.
HOW ARE THE WINGS BUILT?
With a dose of high-precision, high temperature CNC-milled molds, a dash of extremely high pressure and some finishing touches by a robot sander. We build these wings in 100% high-modulus pre-preg carbon fibre using a mix of uni-directional fibres, bi-axial fibres and a proprietary ultra-light core. The wings are unbelievably light, stiff and responsive. A double overlap along the leading edge and trailing edge maximises stiffness and strength.
ARE THEY THE LIGHTEST WINGS IN THE WORLD?
We think so. We don't have access to all available wings but from what we've seen, the wing-building technology that took us three years to perfect puts us in the unique position of having hyper-stiff, bomb-proof wings that are the lightest we've ever seen.
FRONT WING FITTING:
QUICK LOCK HD
The front wing slides over the fuselage and locks in place with a quick half-turn of the pressure bolt. The new HD upgrade has an extra hole for a second bolt that gives additional security for heavy duty use.
Will this front wing work with other fuselages?
Quick Lock HD front wings fit both Quick Lock HD fuselages and Quick Lock fuselages. They won't work with Wind Foil fuselages that use the saddle system.
TAIL WING FITTING SYSTEM
The tail wing sits on a carbon tail piece that has an adjustable rocker saddle. Set the tail wing to your desired angle then slide it on to the fuselage. The tail piece locks in place using our patented Quick Lock system, just like the front wing.
FOILING MAGAZINE:
Issue #6
"Extremely convenient for someone who wants to build their gear simply and quickly. In fact, it's a foil tester's dream. Ridiculously simple and fast process. Threaded sections all sit in small removable stainless steel casings. It's an incredibly well thought out system." Foiling Magazine, Issue #6
MORE LIFT, NEUTRAL OR MORE SPEED?
TRIMMING YOUR TAIL WING
More angle gives more lift. Less angle gives more speed. Once you've trimmed the tail wing angle to your liking, simply tighten the two bolts. There's no need to undo these bolts again. The tail wing and tail piece stay together, ready for Quick Lock assembly / disassembly.
TAIL WING / TAIL PIECE DESIGN
The Razr 250's super-thin profile and gentle C-shape configuration make it our our new go-to wing thanks to its speed, efficiency and maneuverability. Suitable for wing, sup, surf, pump foiling, dock starts or downwind runs. Bascially everything.
The tail wings are made from 28 layers of high-modulus carbon, pressed at high temperatures under tremendous hydraulic pressure for maximum precision, stiffness and performance.
The carbon tail piece is available in sizes 31 or 36, we chose the 36 for the standard wing set since the 36 adds more stability while still offering plenty of maneuverability and reactivity.
SUMMARY
The E-Type wing sets are designed for more glide, more speed, with maximum pumping and flying efficiency.
Available sizes: 1700 / 1300
Combine the wing set with either a Monolithic Carbon mast set or an Aluminium V7 mast set to make a complete foil.

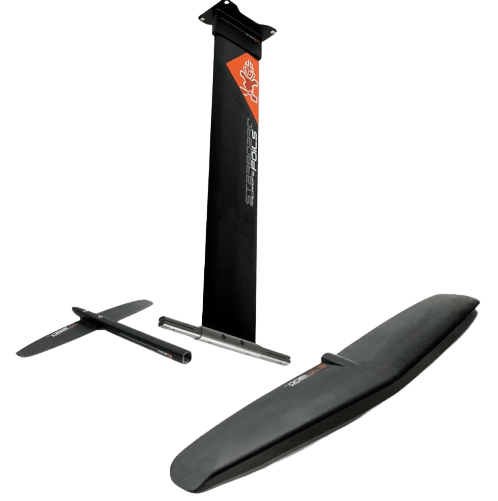

What's in the E-Type Wing Set Box?
| Front Wing: | E-TYPE 1700 / 1300 |
| Tail Wing: | RAZR 250 |
| Tail Piece: | Carbon 36 |
| Other Parts: | Bolts and Torx Key |
| Wing Spans | 1700: 96cm / 1300: 82cm |
Activity:
| Windsurf Foiling | No |
| Wing Foiling: | Yes |
| Wave Foiling: | Yes |
| Wake Foiling: | Yes |
For additional protection, Starboard Foils Wing Covers and the Starboard Foils Team Bags are available to purchase separately.
Recommended Team Bag size:
XL - 82cm x 37cm x 16cm
XXL - 107cm x 37cm x 16cm
Recommended Wing Cover size: T
